ATEN VS1814T-AT-G 4-Port HDMI HDBaseT Splitter
[VS1814T]
$2,516.00

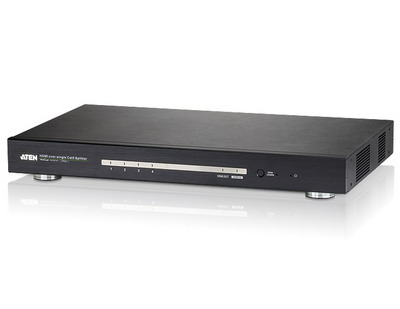

ATEN VS1814T 4-Port HDMI HDBaseT Splitter



The VS1814T 4-Port HDMI HDBaseT Splitter provides a fast and efficient way of switching high definition video from one input source to 4 displays. Incorporating suggested HDBaseT receivers, the VS1814T can be a complete solution ideal for any installation that requires HDMI content to be delivered to multiple destinations, located up to 100m away from the source.

Product Specification : ATEN VS1814T 4-Port HDMI HDBaseT Splitter

  • Video Input :
    - Interfaces : 1 x HDMI Type A Female (Black)
    - Impedance : 100 Ώ
    - Max. Distance : 1.8 m
  • Video Output :
    - Interfaces : 1 x HDMI Type A Female (Black) - Local Output / 4 x RJ-45 Female
    - Impedance : 100 Ώ
  • Video :
    - Max. Data Rate : 10.2 Gbps (3.4 Gbps Per Lane)
    - Max. Pixel Clock : 340 MHz
    - Compliance : HDMI (3D, Deep Color) / HDCP Compatible / Consumer Electronics Control (CEC) / HDBaseT Compatible
    - Max. Resolution :
    Up to 4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0);
    4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)
    (Depends on connected receiver)
    - Max. Distance : Up to 100 m (Depends on connected receiver)
  • Audio :
    - Input : 1 x HDMI Type A Female (Black)
    - Output : 1 x HDMI Type A Female (Black)
  • Control :
    - RS-232 Connector: 1 x DB-9 Female (Black)
  • EDID Settings :
    - EDID Mode : Default / Port 1 / Auto


Price is included 7% VAT



ATEN VS1814T

ATEN VS1814T 4-Port HDMI HDBaseT Splitter

For more information, please visit this products webpage.
This product was added to our catalog on Sunday 01 April, 2018.
