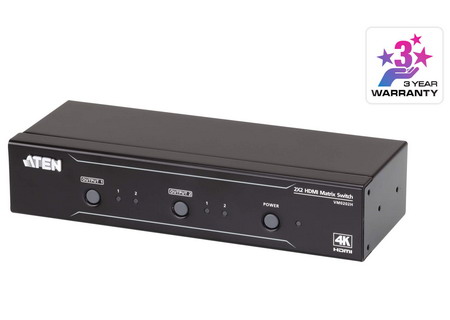

ATEN VM0202H-AT-G 2x2 4K HDMI Matrix Switch
[VM0202H]
$530.00

ATEN VM0202H-AT-G 2x2 4K HDMI Matrix Switch



The VM0202H is a 2 X 2 HDMI Matrix Switch that meets HDMI Specification features including 3D, Deep Color up to 12- bit, and data rates up to 10.2 Gbps. Engineered for the future trend of high-definition video switching, the VM0202H supports computer and video signals at resolutions up to 4K.

The VM0202H matrix switch provides high performance routing of 2 HDMI video sources such as HD camcorders, satellite boxes, HD-DVD players, high-definition Blue- ray players, home theater PCs and stand-alone streaming media players to any 2 HDMI displays. The remote control and convenient front panel pushbuttons allow you to efficiently cycle through HDMI source devices and displays, while the front panel LEDs indicate the source device for each display at a glance.

Product Specification : ATEN VM0202H 2x2 4K HDMI Matrix Switch

  • Video Input :
    - Interfaces : 2 x HDMI Type A Female (Black)
    - Impedance : 100 Ώ
    - Max. Distance : 1.8 m
  • Video Output :
    - Interfaces : 2 x HDMI Type A Female (Black)
    - Impedance : 100 Ώ
    - Max. Distance : 15 m
  • Video :
    - Max. Data Rate : 10.2 Gbps (3.4 Gbps Per Lane)
    - Max. Pixel Clock : 340 MHz
    - Max. Resolution : Up to 4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0); 4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)
    - Compliance : HDMI (3D, 4K, Deep Color) / HDCP 2.2 Compatible / Consumer Electronics Control (CEC)
    - Max. Distance : Up to 15 m
  • Control :
    - USB : 1 x Micro USB / F/W upgrade
    - RS-232 Connector: 1 x DB-9 Female (Black)
    - IR : 1 x Mini Stereo Jack Female (Black)
  • EDID Settings :
    - EDID Mode: EDID Mode: Default / Port1 / Remix


Price is included 7% VAT



ATEN VM0202H

ATEN VM0202H 2x2 4K HDMI Matrix Switch

For more information, please visit this products webpage.
This product was added to our catalog on Saturday 31 March, 2018.
