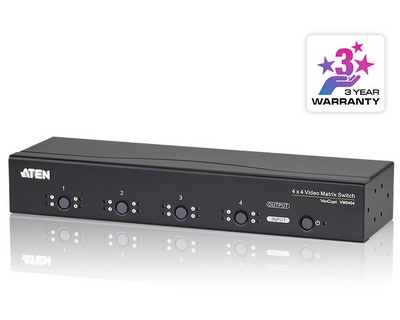

ATEN VM0404-AT-G 4x4 VGA/Audio Matrix Switch
[VM0404]
$663.00

ATEN VM0404-AT-G 4x4 VGA/Audio Matrix Switch



VM0404 4x4 Video Matrix Switch connecting four VGA source devices to four VGA monitors, displays, or projectors at the same time. Itís steadfast unique features include: EDID mode selection for high compatibility, long signal range, easy source/display switching, matrix connections.

As a Matrix Switch, each input can be independently connected to any or all outputs, and the audio and video inputs from each source device can also be switched independently, giving you the ultimate in flexibility and control in any multi-display audio/video installation.

Product Specification : ATEN VM0404 4x4 VGA/Audio Matrix Switch

  • Video Input :
    - Interfaces : 4 x HDB-15 Male (Blue)
    - Impedance : 75 Ώ
    - Max. Distance : 1.8 m
  • Video Output :
    - Interfaces : 4 x HDB-15 Male (Blue)
    - Impedance : 75 Ώ
    - Max. Distance : 30 m
  • Video :
    - Max. Bandwidth : 300 MHz
    - Max. Resolution : Up to 1920 x 1200
    - Max. Distance : Up to 30 m
  • Audio :
    - Input : 4 x Mini Stereo Jack Female (Green)
    - Output : 4 x Mini Stereo Jack Female (Green)
  • Control :
    - RS-232 Connector: 1 x DB-9 Female (Black)
    - IR : 1 x Mini Stereo Jack Female (Black)
  • EDID Settings :
    - EDID Mode: Default / Port1 / Remix / Auto


Price is included 7% VAT



ATEN VM0404

ATEN VM0404 4x4 VGA/Audio Matrix Switch

For more information, please visit this products webpage.
This product was added to our catalog on Saturday 31 March, 2018.
